Steel and Cast Jackshaft, both single bolt
or three hole options |
|
|
|
 |
Cast Jackshaft single bolt or three bolt and
index dowel. Suitable for standard cast or steel drives preferably with
Tuftrided or Nitrided finish. |
|
$275 |
2.5 |
 |
Steel Jackshaft,
Forged EN40B (same as crankshafts) Purposely over-engineered to allow
shaft to be turned down to 12mm to allow clearance for 86mm stroke crank
with Carrillo rods. Drive gear for distributor and oil pump should not
be bronze/brass, use standard cast or Tuftrided/cast drive, or steel or
Nitrided steel. Single bolt or three bolt
and index dowel |
|
$375 |
2.7 |
| No Photo |
Steel Jackshaft Thrust plate |
|
$35 |
0.2 |
 |
Jackshaft Oil Seal |
|
$18 |
0.1 |
 |
Crankshaft
front
cover Oil Seal |
|
$24 |
|
 |
 Saloon
car lightweight steel flywheel 6.6 lbs, 10 1/8 ins diameter, with
no starter ring installed, by 1 1/16 total width. 7.25ins clutch, please
spec 12 or 6 bolt pattern |
|
$306 |
6.6 |
 |
Formula car Billet lightweight Flywheel
5.6 lbs, outer
diameter 10 7/16 by 1/2 ins. Will fit FT 200, starter ring machined into
billet, 7.25 or 5.5 clutch available, 104 tooth, 12 bolt. Compare
to regular flywheel which weighs 8.5 lbs, 52% heavier. |
|
$494 |
5.6 |
 |
Flywheel thrust
ring fits standard BD steel flywheels |
|
$24 |
|
| No Photo |
Camshafts F1 (0.420 lift) pair, custom
profiles available. 1.000 base circle also 1.030 base circle available. |
|
$686 |
12.0 |
 |
Camshaft Thrust Plates |
|
$29 |
0.2 |
 |

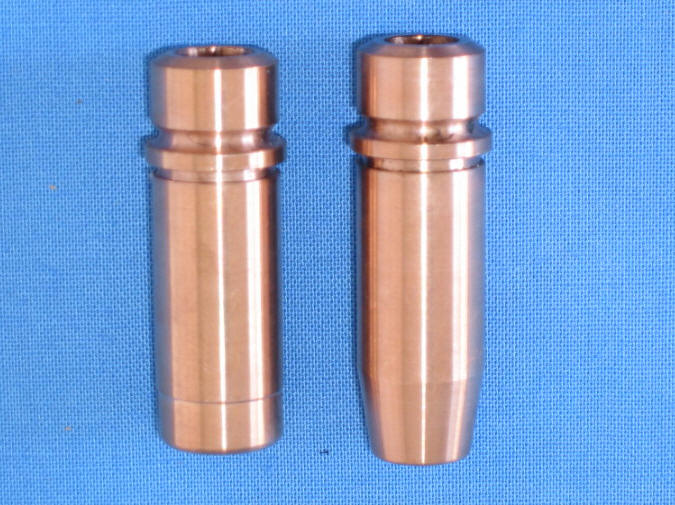

9/32 Valve guides
Colisbro Bronze for OE replacement. (set of 16) |
|
$207 |
|
 |

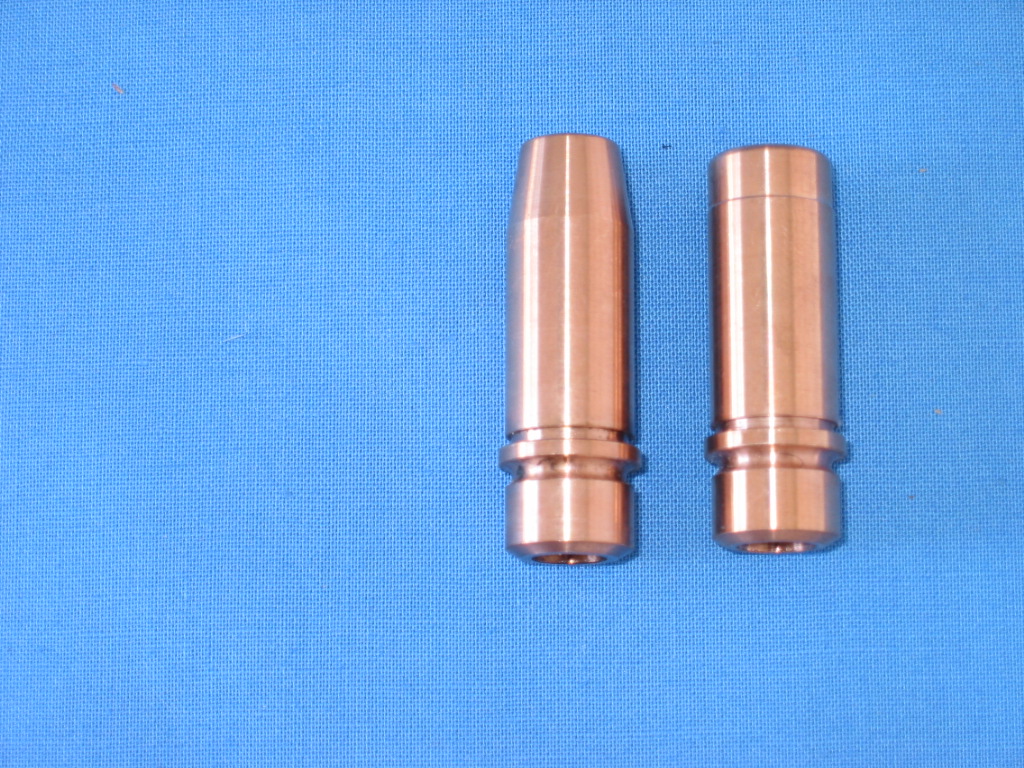

6mm Valve Guides
Colisbro Bronze for OE replacement. (set of 16) |
|
$222 |
|
 |
Selection of valve
spring retainers, oil seal, and spring platform |
|
|
|
 |
Valve
stem seals 9/32
ins (set of 16) Black Neoprene, (on left) |
|
$44 |
0.03 |
|
|
Tuftrided valve spring
platforms 1/2 hole (set of 16),(on right) |
|
$63 |
0.25 |
 |
Steel spring retainer
(on left) for double spring, 9/32 valve stem (set of 16) 17grams each
(normal weight) |
|
$146 |
0.6 |
|
|
Alloy spring retainer
(on right) for double spring, 9/32 valve stem (set of 16) 8 grams each
(very light) |
|
$168 |
0.3 |
 |
Cosworth Keepers or Valve
Collets for 9/32 valve stems per half |
|
$ |
|
|
No photo |
9/32 Tappet shim
blanks, grind to precise size from choice of three blanks :
Thickness available 0.010, 0.015, 0.020ins |
|
$ |
|
|
No photo |
FVA/FVC Quill
shaft |
|
$141 |
|
 |

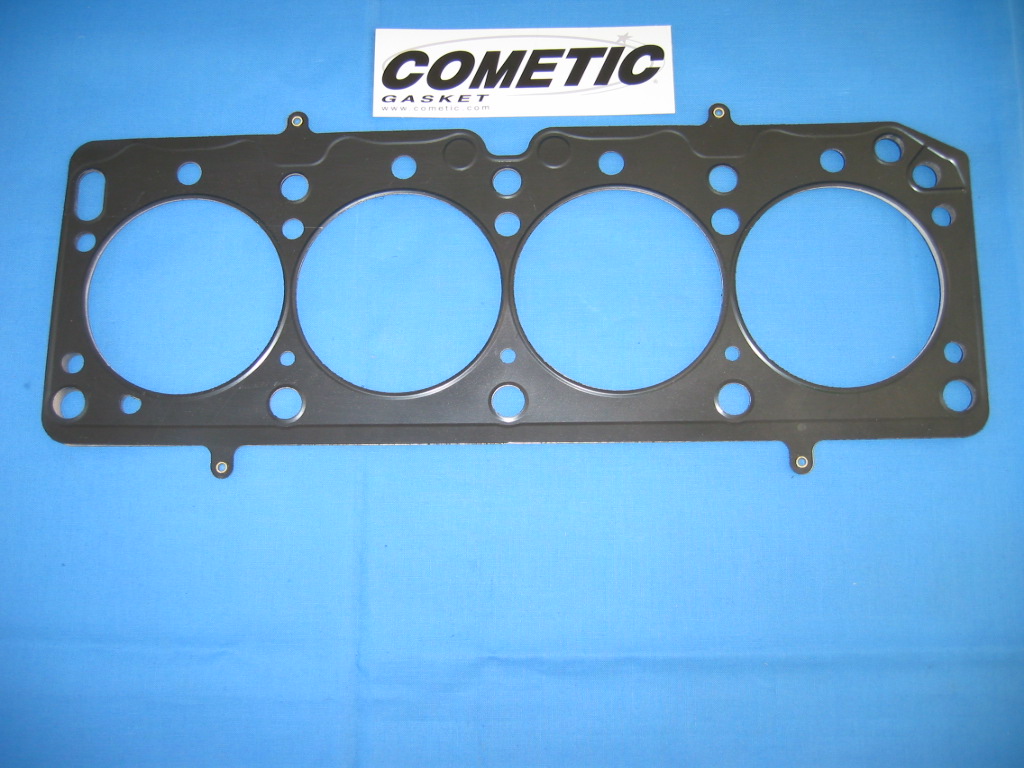

BDG 90.4mm, Blue Sky Custom
Cometic MLS Cylinder Head three layer stainless steel gasket with HP
ring built into gasket layers, no need to 'O' ring block anymore. All
pushrod holes eliminated but one to allow oil drain down from head to
sump. Tested up to over 15 to 1 Compression ratio. Custom bore size 81
to 90.4mm available, specify actual bore size as gasket hole will be
0.020 larger than bore. Gasket thickness 0.043ins recommended, down to
0.030 ins available. |
|
$128 |
|
 |

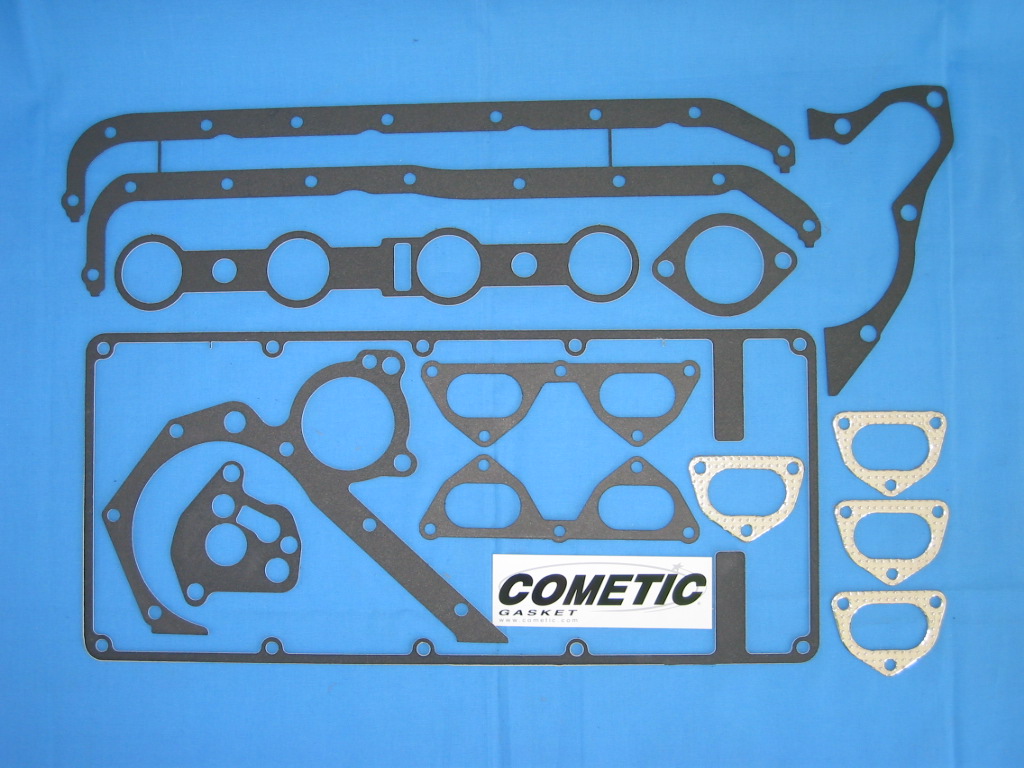

Blue Sky custom
Cometic BD
Engine Gasket set includes: Cam cover, front cover, water pump, rear
cover, oil pan, oil pump, thermostat, intake manifolds, and metal waffle
exhaust manifold three bolt gaskets. Gaskets are re-usable foam sandwich
material |
|
$64 |
|
 |

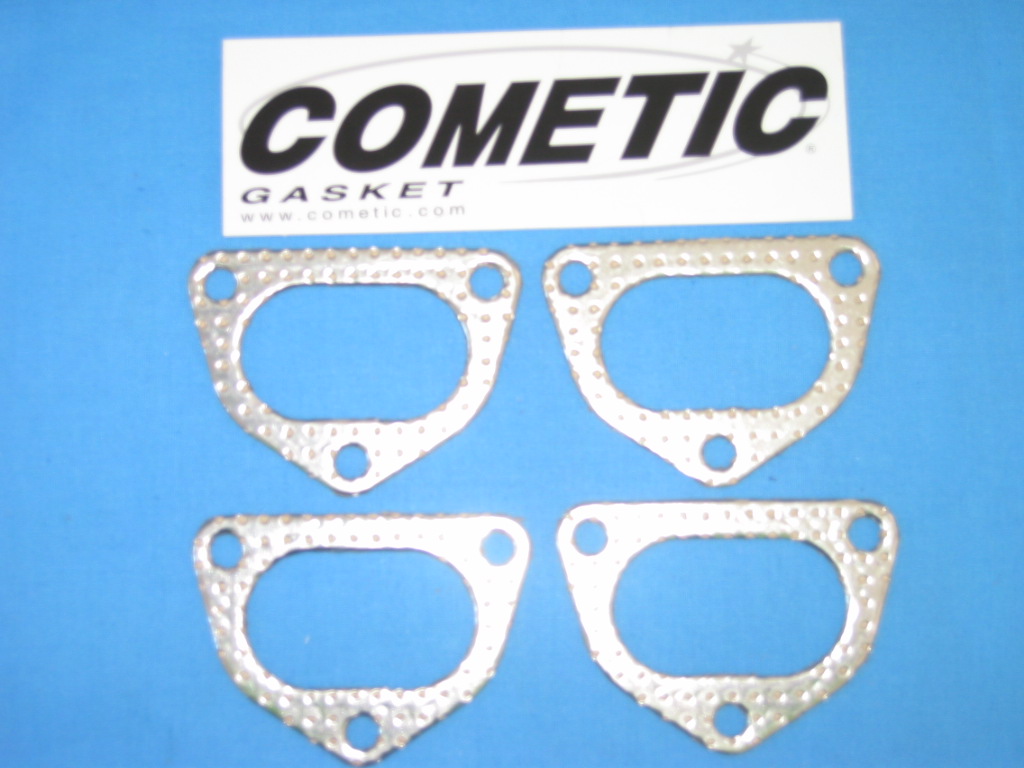

Stainless steel metal
waffle sandwich exhaust manifold gaskets, three bolt, set of four
gaskets |
|
|
|
 |

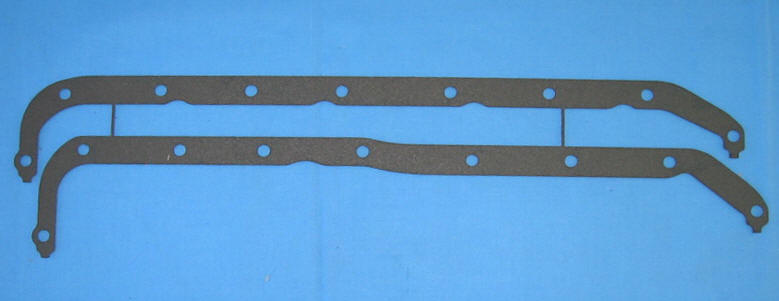

BD engine Sump gasket,
which is a re-usable foam sandwich material |
|
$18 |
|
 |

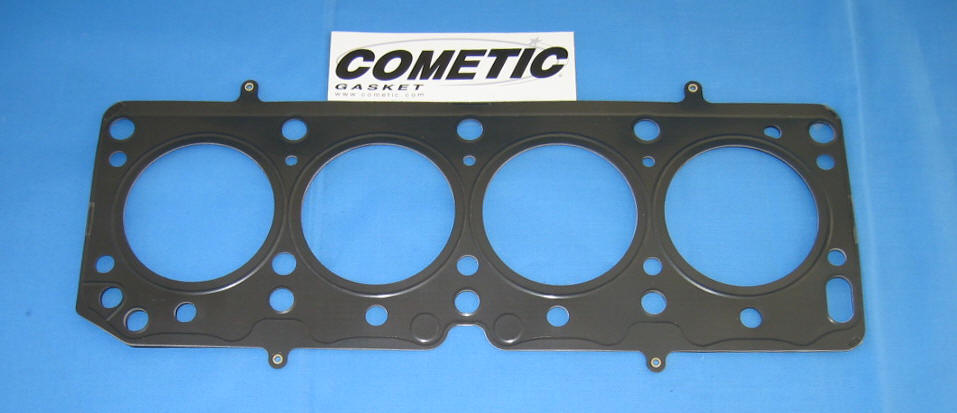

BDA/BDD 81mm Cylinder
head gasket MLS design as above with out HP ring, also available
with HP rings as would be recommended by Blue Sky Racing and most
engine builders, available for a slightly higher cost. |
|
$98 |
|
