Part Description
For more technical data refer to
TECHNICAL NOTES |
Special
Offers |
Sale Price |
Weight lbs |
 |

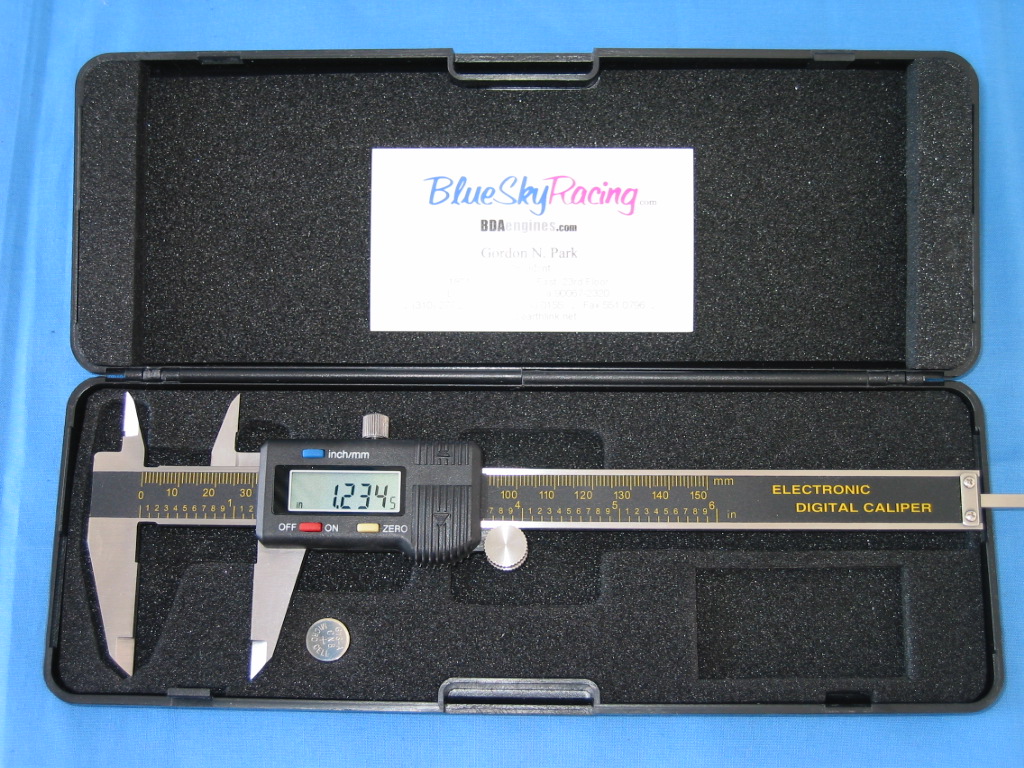

SPECIAL
OFFER Digital Caliper on sale for $24.95, normal retail is $40
or more. Extremely accurate to 0.0005 and repeatable time after time.
Test for a good caliper is to slide it quickly 6 times end to end in
rapid succession, it should always read zero. Instant inch to metric
conversion, and zero set. Its a steal. Give them as corporate gifts,
with padded case and spare battery. |
|
$24.95 |
1.0 |
 |
Cam Carrier
locating dowel studs with lock nuts. (pair) |
|
$19 |
0.1 |
 |
12mm BDA Head stud kit,
(0.472 ins) Ten high quality custom studs, 12 point nuts and
stainless steel spacing washers, includes two custom indexing studs for
accurate cylinder head indexing. Original Ford bolts were 7/16 or (0.438
ins) smaller by 1/32nd. Heads torque better with studs due to a more
linear clamping force. Original bolts are torque twisted into
block. |
|
$204 |
2.5 |
 |
7/16 unc/unf
BDA Head stud kit. Ten very high quality custom studs with Alan Key for
easy installation and withdrawel. Heat-treated 8740 Chrome moly steel
200,000 psi tensile strength, Black Oxide finish. Twelve point nuts
aerospace quality 180,000 psi. |
|
$156 |
2.3 |
 |
Carburetor studs 5/16
ins, 18 and 24 tpi , 2 ins
long with
aircraft jet nuts (set of 8) |
|
$ |
0.4 |
 |
Inlet/Exhaust
1/4 ins, 20 and 28 tpi , 1.25 ins long studs and K nuts. (set of 25) |
|
$59 |
0.5 |
 |
Billet Main Cap
machined from 080A15 steel. Ground finish cap to block face dowel
located. Can be installed to cast block with very minor revision to
allow stud to seat. Must be used with matching studs below
|
|
$175 |
10.0 |
 |
ARP custom studs of
817M40 steel. Complete set of 10 Studs, steel spacing
washers and 12 point nuts only. |
|
$150 |
0.9 |
 |
Complete set of
5 Billet Main Caps with all hardware as above, studs , washers and
twelve point nuts |
|
$295 |
9.8 |
 |
BDT high volume
water pump, suitable for alloy block only. Suitable for both BDD and BDT
alloy blocks. Especially well suited for high ambient temperature
climates around the world |
|
$295 |
2.3 |
 |
BDG/BDD Standard
volume water pump for alloy block only. |
|
$135 |
1.8 |
 |
BDT and BDG
impellor size comparison. Both take advantage of the unique cooling
design of the Blue Sky Racing cylinder head. |
|
|
|
|
 |
BDD water pump
suitable only for cast iron block. (pulley not included) |
|
$110 |
1.8 |
 |
4 Port dry sump
oil pump with 3/4 inch scavenge line options. Superior 4 Port
design permits direct oil feed to main oil gallery, feeding oil directly
to crank bearings and camshaft assemblies, resulting in more efficient
oiling of critical engine components. 3/4 inch pictured |
|
$307 |
3.0 |
 |
4 Port dry sump
oil pump with 1 inch scavenge line options. Superior 4 Port
design permits direct oil feed to main oil gallery, feeding oil directly
to crank bearings and camshaft assemblies, resulting in more efficient
oiling of critical engine components. |
|
$323 |
3.0 |
 |
5 Port dry sump
oil pump with 3/4 inch scavenge line. 5 Port design feeds to main
oil gallery, through internal passage ways cast in block behind oil pump
mounting plate. |
|
$321 |
3.0 |
|
 |
Scavenge tube
for oil pumps, 3/4 or 1 inch complete with circlip and 'O' ring seals |
|
$26 |
0.2 |
 |
BDD/BDG
pattern Cam cover similar to original, LM25 alloy. |
|
$294 |
5.2 |
 |

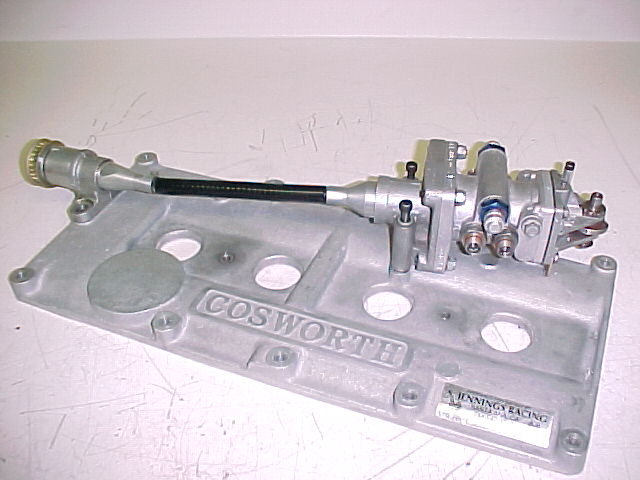

BDD/BDG
Lucas Fuel injection pattern Cam Cover, similar to original |
|
$354 |
5.7 |
|
 |
BDD/BDG pattern Front
cover casting, Oil seals are sold separately |
|
$304 |
1.1 |
 |
JENNINGS
Intake
manifolds suitable for 45 to 50 DCOE / SP Webers or Fuel Injection
throttle bodies. Castings will require to be matched to cylinder heads
and sized appropriately. Can easily be customized or enlarged with hand
grinding. Suitable for a 50mm bore size at manifold |
|
$220 |
2.6 |
 |
BD Intake
manifolds best suited for up to 45 DCOE Webers due to 42mm round bore
size and 40x24mm oval opening. Both can be enlarged with some hand
grinding due to wall thickness for Atlantic's with
Weber 48 DCO SP's which require a 50mm bore size at manifold interface,
not recommended. |
|
$303 |
1.8 |
 |
Mark 8 and Mark
9 adaptor suitable for BD engine blocks. Not suitable for Ralt Atlantics
as starter is on the opposite side |
|
$433 |
8.5 |
 |
Beautifully
fabricated BD dry sump pan with 3/4 in scavenge pipe, has original metal
stamping pattern on gasket face. Threaded to accept brass filter screen
as depicted below, brazed metal oils screen and baffle inside. Cast Sump
available for $443 |
|
$330 |
8.0 |
 |
Custom brass oil
screen and crush washer for dry sump applications |
|
$35 |
0.5 |
 |
Hand spun
aluminium 45,48,50 mm air horns and CNC machined flanges |
|
$180 |
1.2 |
